Description

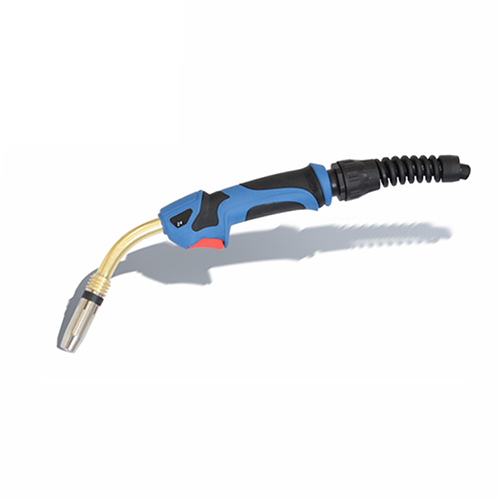

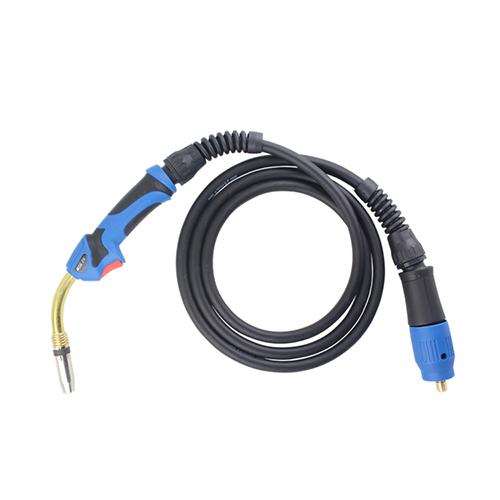

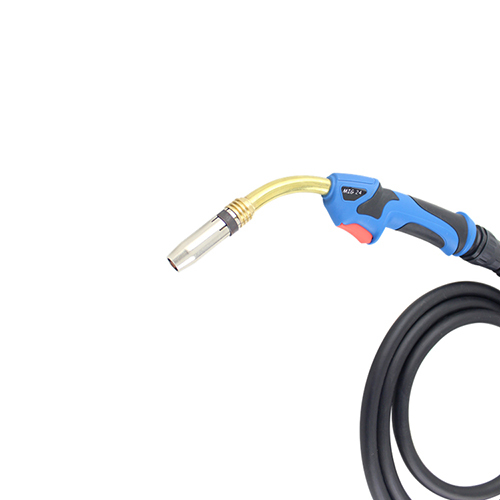

| PART NO. | 24AK |
| APPLICATION | CO2 WELDING TORCH |
| COOLING | GAS COOLED |
| WIRE DIAMETER | 0.80-1.20 MM |
| RATING | 250A CO2, 220A MIXED |
| DUTY CYCLE | 60% |
| CABLE LENGTH | 3M / 4M / 5M |

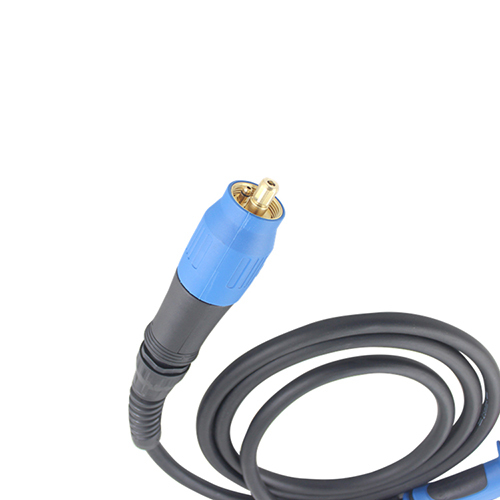

| REAR CONNECTOR | EURO CENTRAL CONNECTOR |
| CERTIFICATION | ISO-90014-2000, CCC |
Torch Parts
| Position | Ref. | Description |
| 1 | 145.0080 | Gas nozzle Φ 12.5mm |
| 2 | 140.0253 | Conract tip Φ 1.0mmE-CU/M6x25 |
| 3 | 142.0003 |
Contact tip holder M6x26 |
| 4 | wHITE CERAMIC Gas diffuser 24kd | |
| 5 | 012.0001 | Torch Head 24kD |
| 6 | MIG handle Blue/Grip | |
| 7 | 185.0031 | Trigger |
| 8 | Screw M3x10 | |
| 9 | Joint for MIG handle | |
| 10 | Spring for cable support | |
| 11 | Coaxical cable 3m | |
| 12 | Back box | |
| 12.1 | Housing for handle | |
| 13 | Screw M4x6 | |
| 14 | Adaptor nut | |
| 15 | 501.2155 | Euro central adaptor body/air cooling |
| 16 | 501.0082 | Liner nut |
| 17 | Brass terminal Φ 2.0x4.0mm 0.35m |
