Description

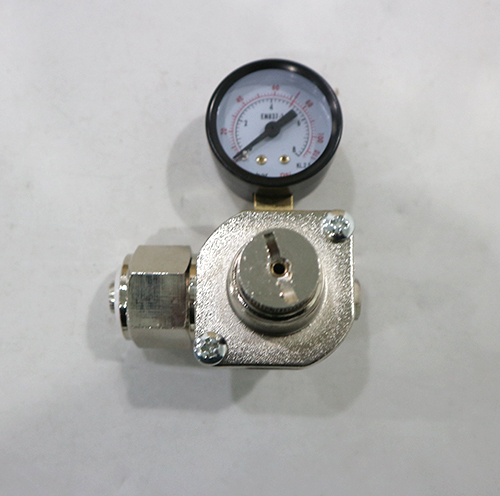

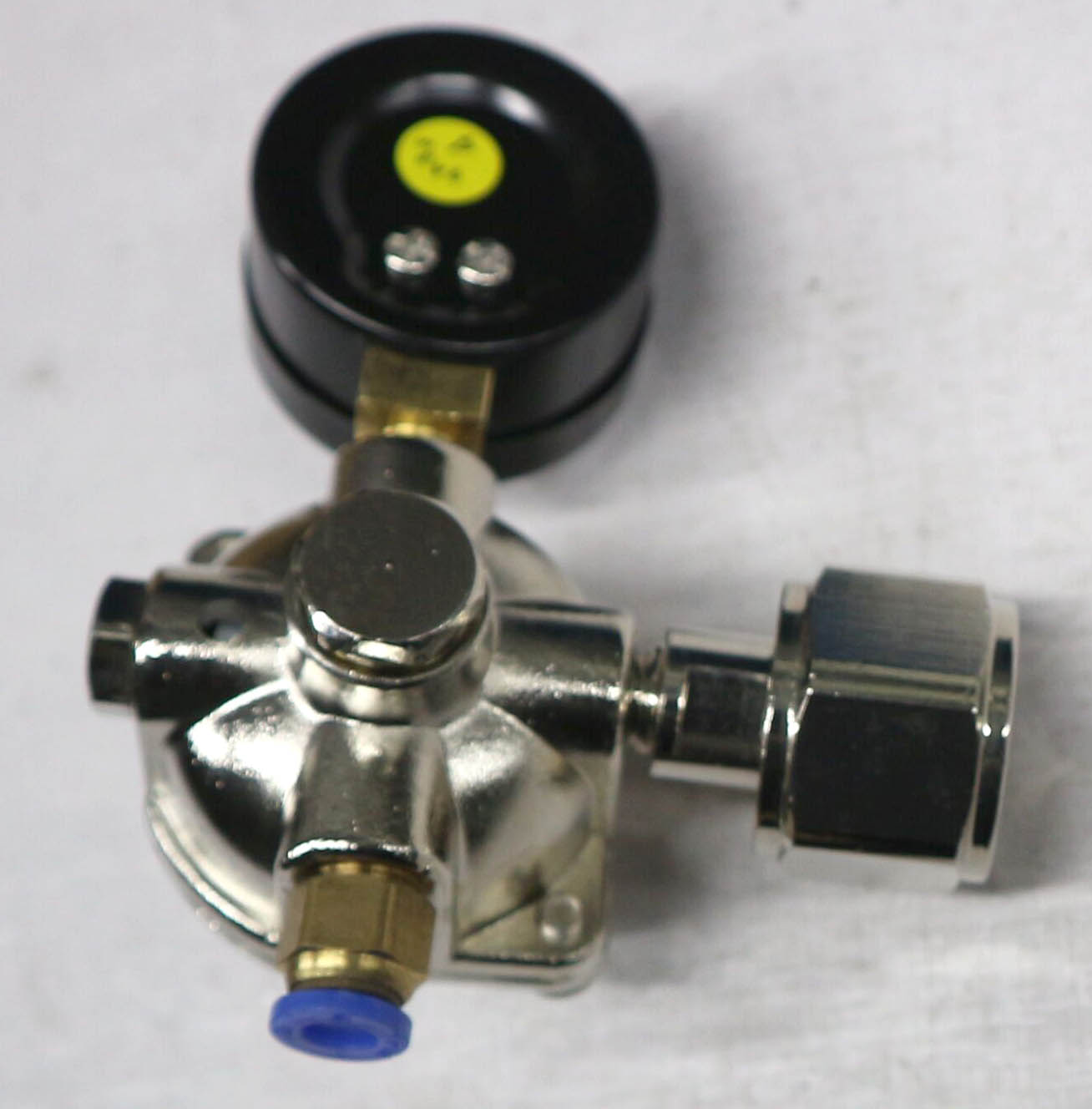

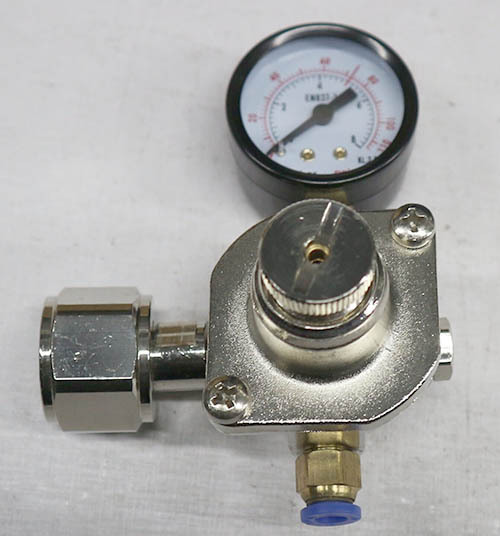

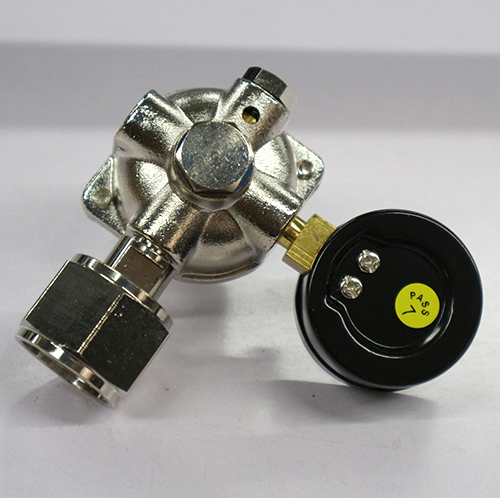

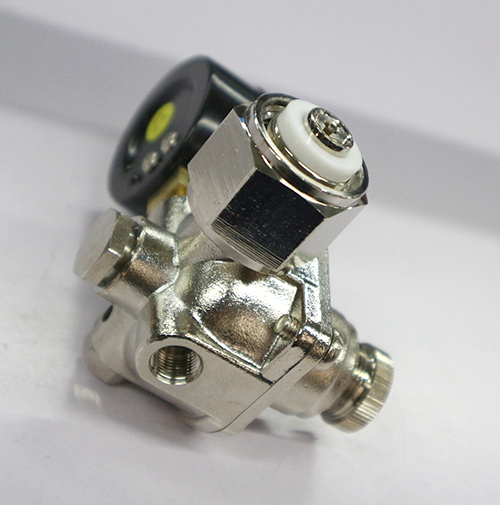

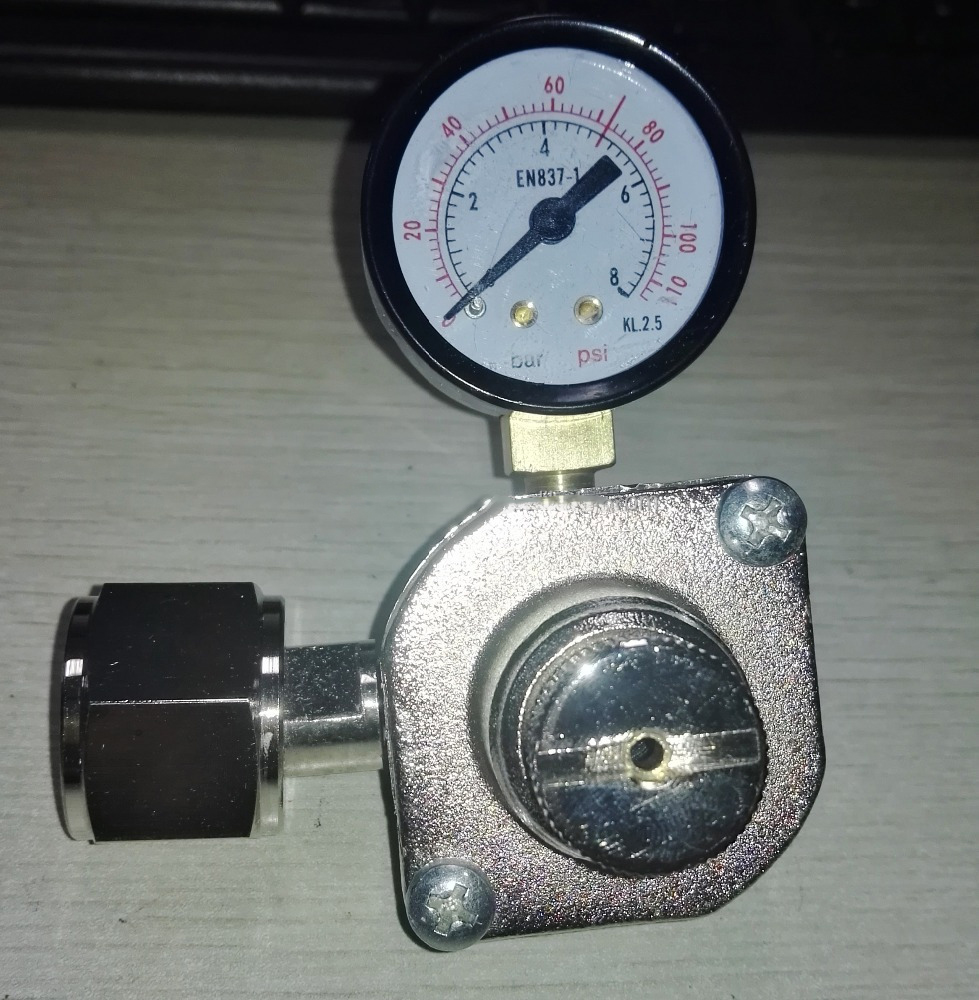

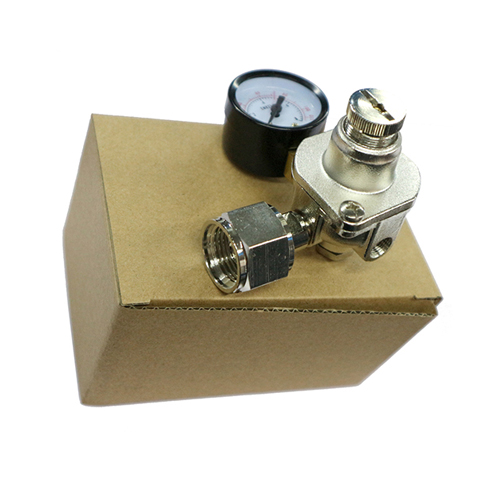

| PART NO. | TR-04 | |
| APPLICATION | GAS CUTTING GAS WELDING | |
| GAS TYPE | CO2 | |
| MATERIAL | BRASS | |
| OUTLET CONNECTOR | 1/8" BSPP | |
| INLET CONNECTOR | W21,8mm | |
| MOQ | 300PCS | |
| CERTIFICATION | ISO-9001 | |
|
PACKING: 20PCS/CARTON, G.W.:10.50KGS, N.W.: 9.0KGS, Meas.: 39*28*21CM |

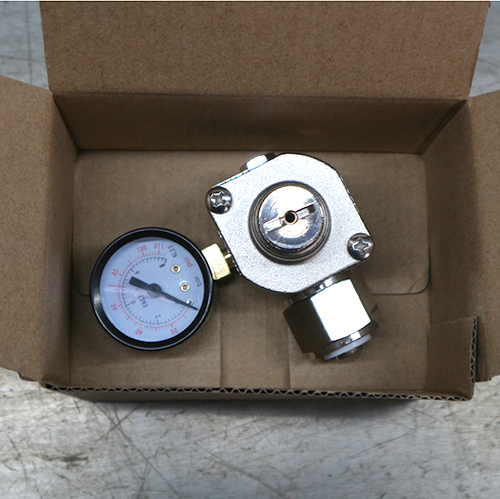

Packing Details
1PC/INNER BOX,
20PCS/CTN,
G.W.: 9KGS
N.W.: 8KGS
MEAS.: 39*28*21CM
| CONNECTION CAN BE CUSTOMIZED | ||||||
| TECHNICAL DATA | ||||||
| Gas | Input Pressure | Output Pressure | Gauge Pressure Range (Bar) |
Flow(L/min) | Connection | |
| Input | Output | |||||
| 30Bar | 0-4 Bar | 315Bar | 6Bar | G1/4"-19 G3/8"-RH G3/8"-LH G3/8"-19 G3/8"-19-LH G5/8"-14 G7/8"-14NLH 9/16" 9/16"-LH 9/16"-RH 9/16"-18 R.H.(M) 9/16"-18 L.H. 9/16"-18 M16-1.5 M16-1.5 LH W21.8-14 1/4"NPTF BSP3/8" RH BSP3/8" LH CGA510 CGA540 CGA580 CGA320 CGA310 CGA300 |
||
| 230Bar | 0-10 Bar | 315Bar | 16Bar | |||
| 15Mpa | 0-1.25 Mpa | 25Mpa | 2.5Mpa | |||
| 20000Kpa | 0-1000Kpa | 28000Kpa | 1400Kpa | |||
| 3000PSI/ | 150PSI/ | 4000PSI/ | 200PSI/ | |||
| 200kg/cm | 0-12.5kg/cm | 350kg/cm | 25kg/cm2 | |||
| ACETYLENE | 30Bar | 0-1.5Bar | 40Bar | 2.5Bar | ||
| 3Mpa | 0-0.125Mpa | 4Mpa | 0.25Mpa | |||
| 2000Kpa | 0-150Kpa | 2800Kpa | 200Kpa | |||
| 300Psi | 20Psi | 400Psi | 30Psi | |||
| 20Kg/cm | 0-1.5kg/cm2 | 25Kg/cm2 | 2.5kg/cm2 | |||
| LPG | 20Bar | 0-3Bar | 30Bar | 3Bar | ||
| 3Mpa | 0-0.2Mpa | 4Mpa | 0.3Mpa | 6M3/h | ||
| 20Kg/cm | 0-1.5kg/cm2 | 30kg/cm2 | 3kg/cm2 | |||
| 300Psi | 20Psi | 400Psi | 30Psi | |||
| ARGON/ CO2/ HELIUM |
300Bar | 0-30LPM | 315Bar | 30/32LPM | 1-30LPM | |
| 15Mpa | 0.1-0.5Mpa | 25Mpa | 0.6Mpa | 1-25LPM | ||
| 15Mpa | 0-30LPM | 25Mpa | 32LPM | 1-30LPM | ||
| 3000Psi | 400PSI | 4000PSI | 600Psi | |||
| 230Bar | 10Bar | 315Bar | 16Bar |
